C-TYPE
SANKO HAMMER DRIVE ANCHOR - STEEL (C-TYPE)

Description

SPECIAL FEATURES
Save time, no special tools required. Depth of hole not critical, no depth gauge required. Unique from other anchor styles, no torque wrench is required to set, simply drive pin flush with top for positive anchor setting. Other anchor styles rise when tightening nut and require longer anchor for same strength. Zinc plus chrome coating for corrosion resistance 72 hrs salt spray test. High strength steel with greater leg expansion ensure more firm contact with concrete than anchors made with other materials.

INSTALLATION METHOD

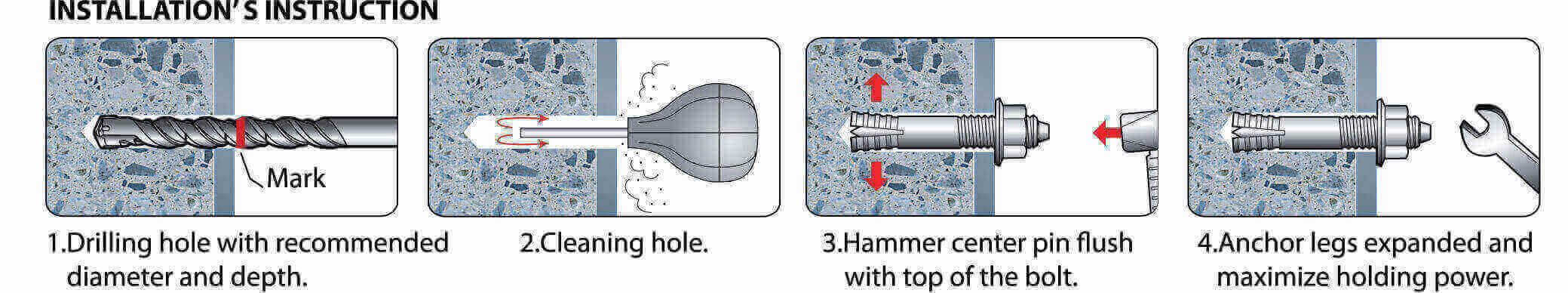

INSTALLATION INSTRUCTION

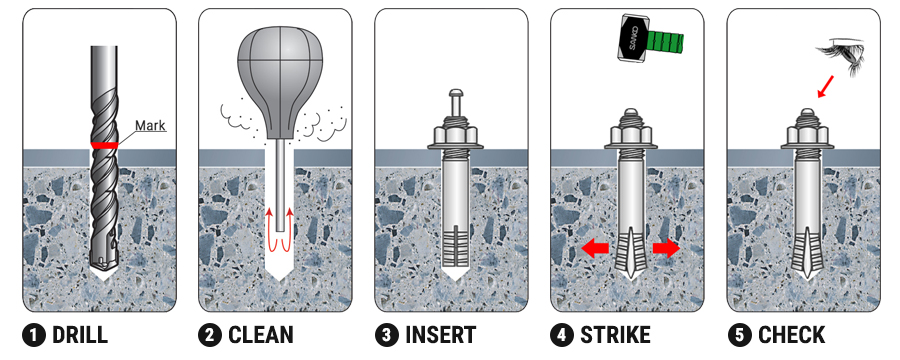

Drill hole with recommended diameter and depth. Clean the hole. Insert the Hammer Drive Anchor. Hammer the Center Pin flush with the top of the bolt. Anchor bolt legs fully expanded and maximize power. (Do not need to tighten)
HOW TO INSTALL AND USE HAMMER DRIVE ANCHOR (QUICK & EASY JUST HAMMER)


TECHNICAL FEATURES


APPLICATIONS

Sanko Hammer Drive Anchor Can be used in construction, fastening work such as type of work Outlet Box, Stadium seats, Steel buildings, Wood plates, Machine location, Parking meter, Wall hangers, Livestock equipment, Belt mounting, Distribution panels, Bracing, Shelving, Baseboard heating, Grain bins

Examples of application in construction for fixing fences
Examples of applications in construction for Racking System
Examples of applications in construction for Car stopper
