EP-19V
HANDY PUNCHERS (EP-19V)

DESCRIPTION

The EP Punch portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements.

DETAIL

The EP-19V is a best seller. It is easy to handle at a weight of only 14,5 kilograms. Punches through steel up to 6mm thick and stainless steel up to 5mm thick. Maximum hole diameter that can be punched with the EP-19V: Round hole 20mm. Elliptical hole 14mm x 21mm. Additional die/punch sets can be bought for various hole sizes. Some Punch/Die sets are interchangeable with the EP-20S. Dimensions in milimeters, excluding handle and side stand: 484 (H) x 195 (D) x 133 (W).


SPECIFICATION

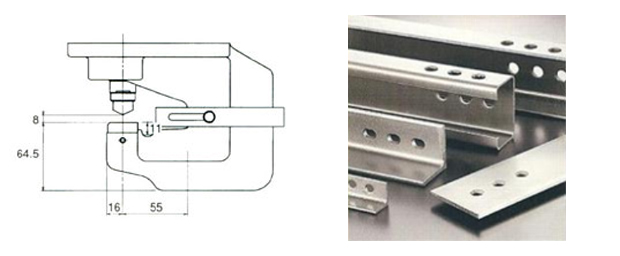

SIZE OF MATERIAL

PUNCH / DIE SIZES & MAXIMUM MATERIAL THICKNESSES
