EP-2110V
HANDY PUNCHERS (EP-2110V)

DESCRIPTION

The EP Punch portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements.

DETAIL

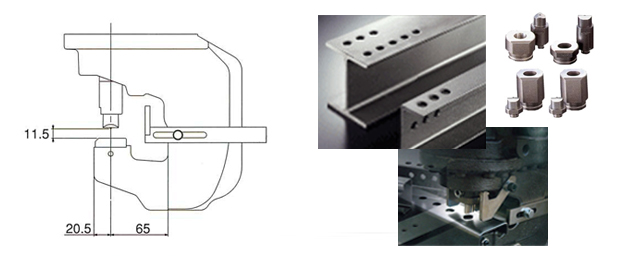

The EP-2110V biggest and toughest model in our range of hydraulic punches. It is easy to handle at a weight of only 21,2 kilograms. Mainly for H-Beams. Punches through steel up to 10mm thick and stainless steel up to 6mm thick. Maximum hole diameter that can be punched with the EP-2110V:
Round hole 22mm. Elliptical hole 18,2mm x 22mm. Additional die/punch sets can be bought for various hole sizes. Dimensions in milimeters, excluding handle and side stand: 554 (H) x 217 (D) x 138 (W).


SPECIFICATION

SIZE OF MATERIAL

PUNCH / DIE SIZES & MAXIMUM MATERIAL THICKNESSES
