PRODUCT » PORTABLE EQUIPMENT » HANDY PUNCHER » EP-1475V
| EP-1475V |
 |
| HANDY PUNCHERS (EP-1475V) |
| DESCRIPTION |
| The EP Punch portable punching machines are ideal for punching I beams and a whole host of applications, saving considerable time compared to drilling. Available in various capacities and throat depths there is a machine for most requirements. |

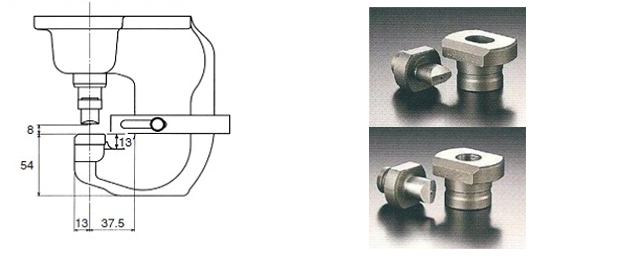

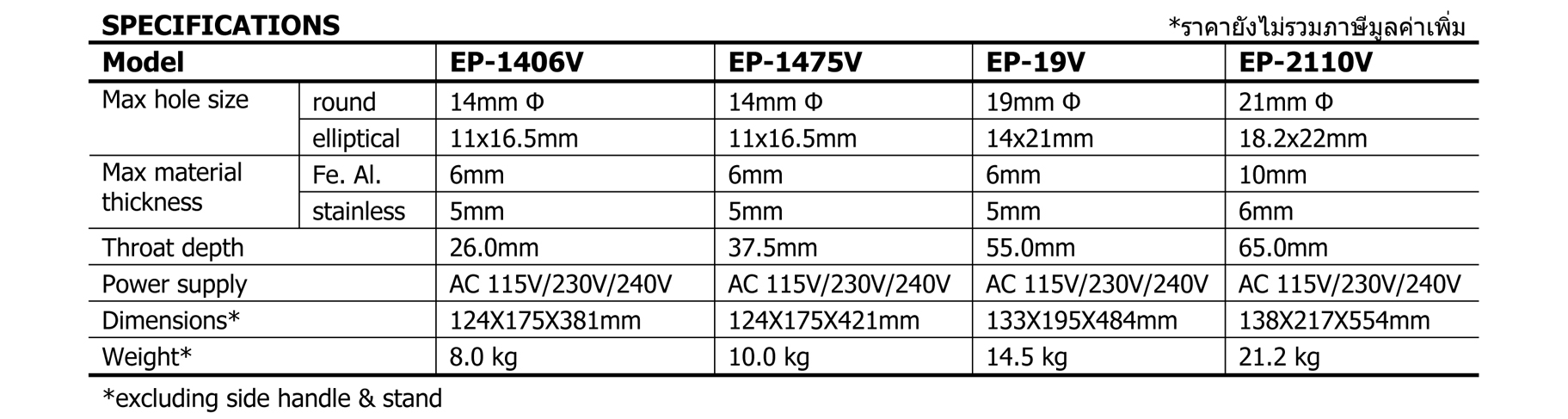

The EP-1475V is a light punch with a large throat to handle lip channel bars. It is easy to operate at a weight of only 10 kilograms. Punches through steel up to 6mm thick and stainless steel up to 5mm thick. Maximum diameter that can be punched with the EP-1475V: Round holes 15mm and Elliptical holes 11mm x 16.5mm. Additional die/punch sets can be bought for various hole sizes. Some Punch/Die sets are interchangeable with the EP-1406V. Dimensions in milimeters, excluding handle and side stand: 421 (H) x 175 (D) x 124 (W).

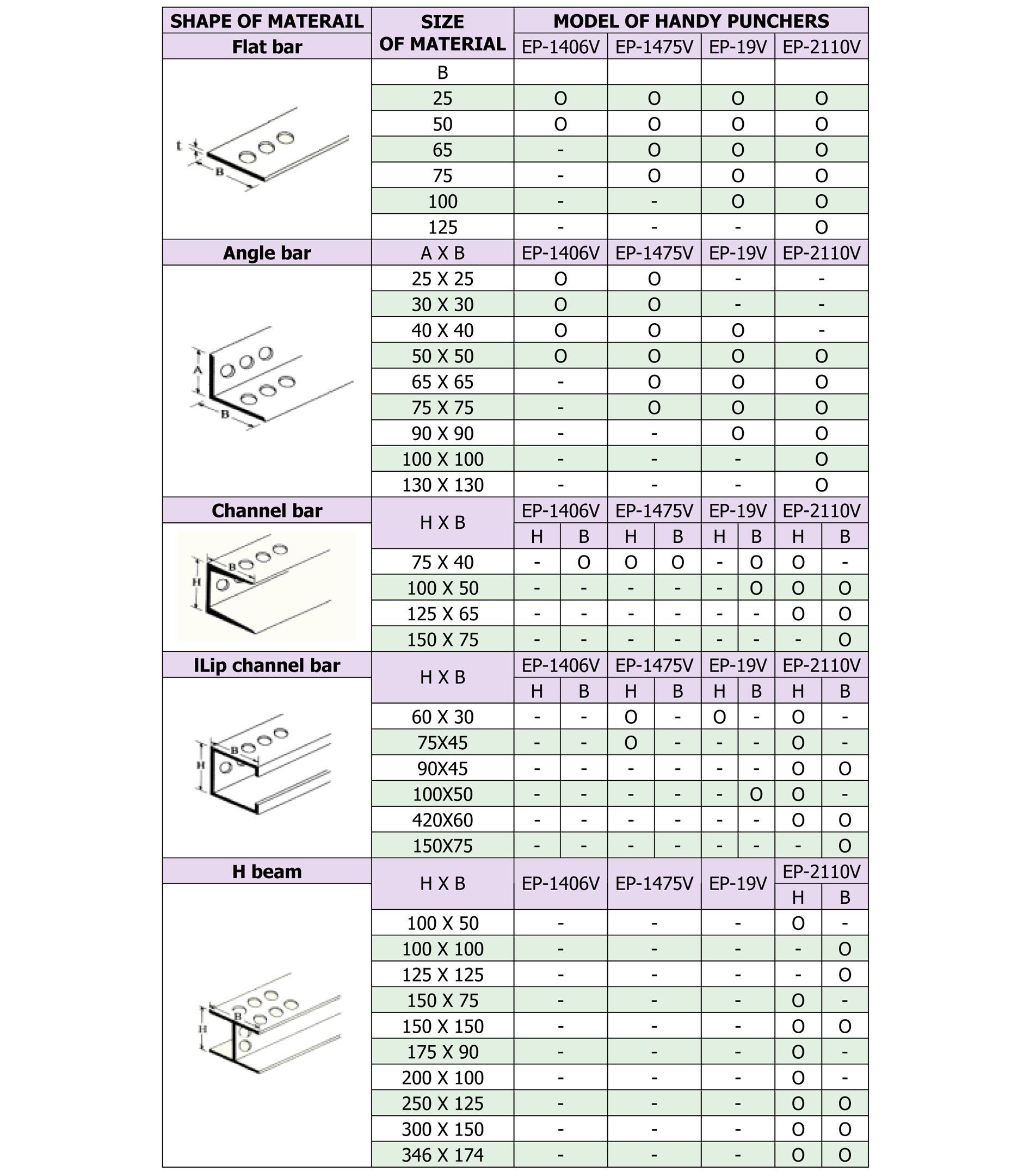

SIZE OF MATERIAL

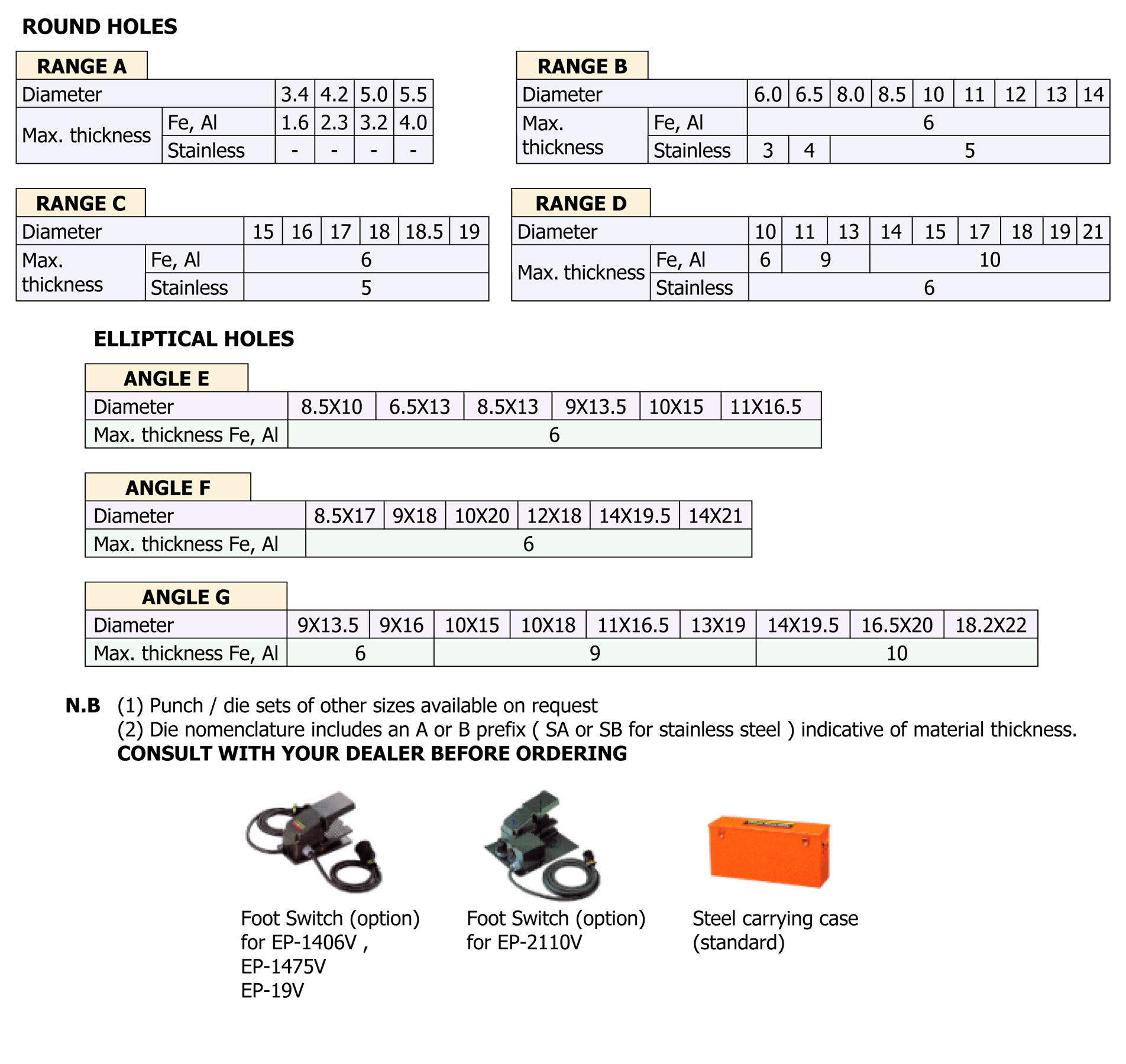

PUNCH / DIE SIZES & MAXIMUM MATERIAL THICKNESSES
